A wheeled excavator is a mechanical device consisting of a wheeled chassis and an excavation device. Compared with traditional crawler excavators, its biggest feature is that it uses a wheeled chassis, which has high mobility and flexibility. Wheeled excavators are widely used in scenarios that require high mobility, short-distance transportation, and fast operation.
Main components of wheeled excavator
| Performance Parameters | Working Parameters | ||

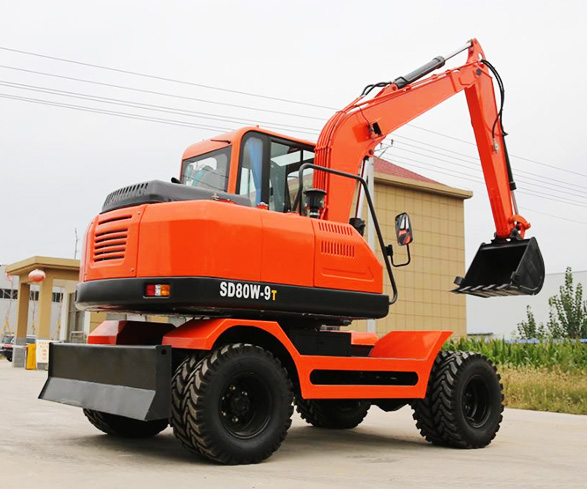

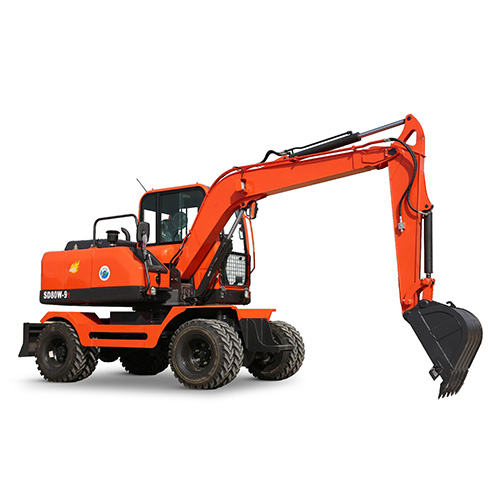

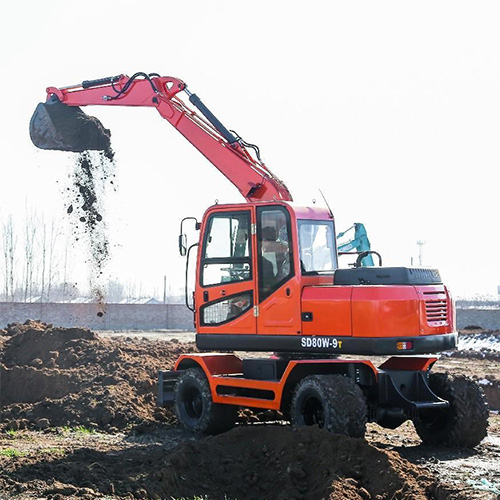

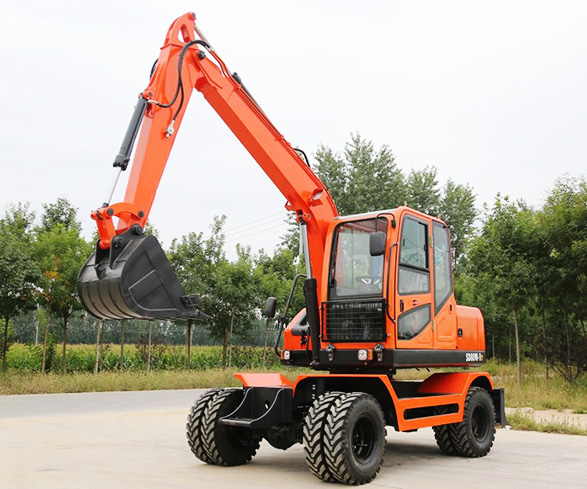

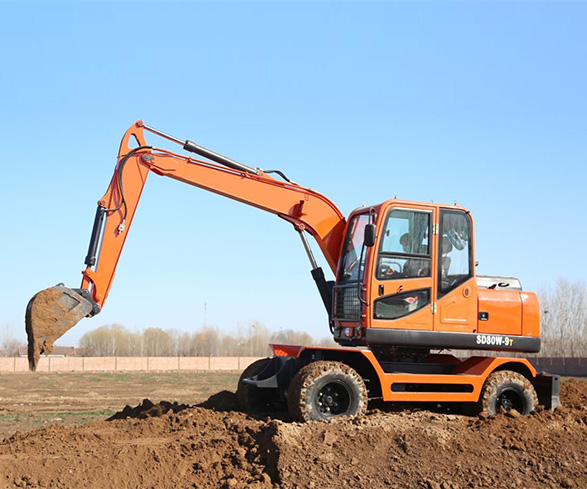

| Platform width | 2080mm | Product Model | SD80W-9T |
| Hood height | 1800mm | ground pressure | 49kpa |
| Platform ground clearance | 1050mm | Maximum driving speed | 35Km/h |
| wheelbase | 2350mm | Maximum traction force | 60KN |
| boom length | 3400mm | Platform speed | 10.2rmp |
| arm length | 1900mm | Maximum excavation height | 6400mm |
| Overall weight | 6850Kg | Maximum dumping height | 4700mm |
| Bucket capacity | 0.3m | Maximum Digging Depth | 3350mm |
| rated power | 48KW | Maximum digging radius | 6480mm |
| speed | 2200r/min | Maximum excavation distance | 6190mm |
| hydraulic pressure | 22MPa | Minimum radius | 2288mm |
| Maximum climbing angle | 30° | Maximum lifting height of bulldozer | 290mm |
| Bucket width | 700mm | Maximum sinking depth of bulldozer | 350mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
