In highway construction, it is mainly used for filling and excavation of roadbed project, aggregate and loading of asphalt and cement concrete yard. Because it has the advantages of fast working speed, good maneuverability, lightweight operation, and so on, it develops very quickly and becomes the main machinery in earthwork construction.

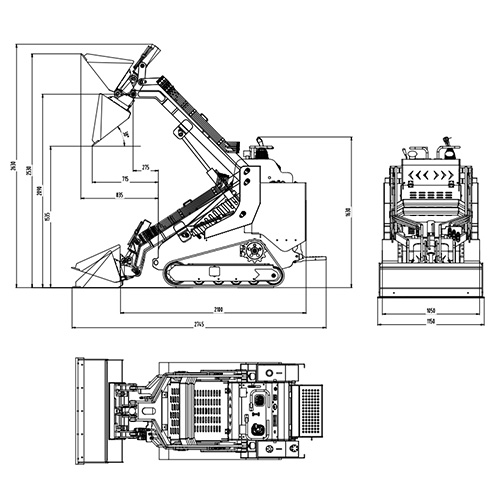

| Performance Parameters | Working Parameters | ||
| Maximum working height | 2630mm | Rated power (KW) | 14KW |
| Maximum loading height | 2090 mm | Speed (rpm) | 2200 |
| Maximum unloading height | 1535 mm | Pressure (Mpa) | 0-17 |
| Maximum tipping distance | 715mm | Appliance flow rate | 0-32L |
| Maximum unloading angle | 38° | Working load | 450 Kg |
| Total height | 1630 mm | Bucket capacity | 0.2m³ |
| Ground clearance | 150 mm | Maximum lifting force | 530 Kg |
| Overall length without bucket | 2220 mm | Travelling speed | 0-4.5Km/h |
| Overall width | 1050 mm | Working weight | 1330 Kg |
| Bucket width | 1150mm | Fuel tank | 30L |
| Overall length with bucket | 2745 mm | Engine oil | 4L |
| Folding tread without bucket overall length | 2100 mm | Hydraulic oil tank | 35L |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
