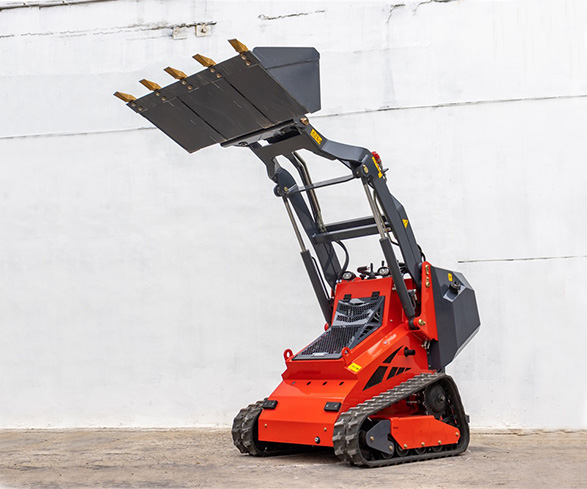

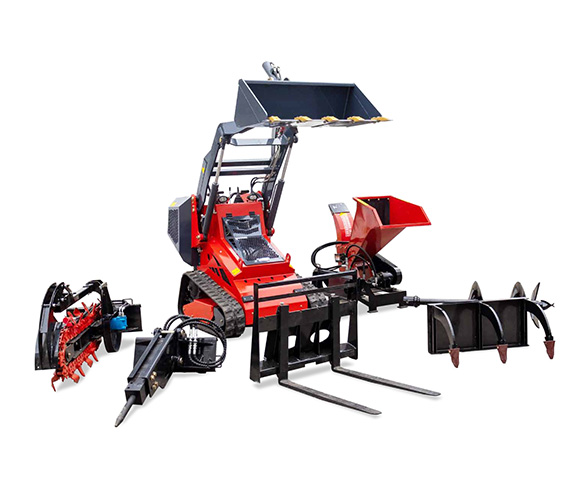

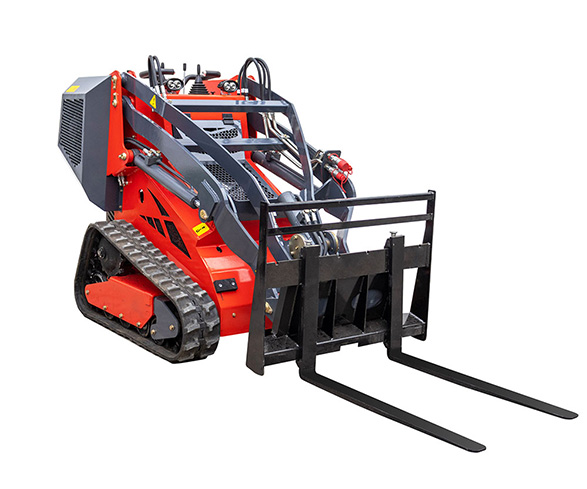

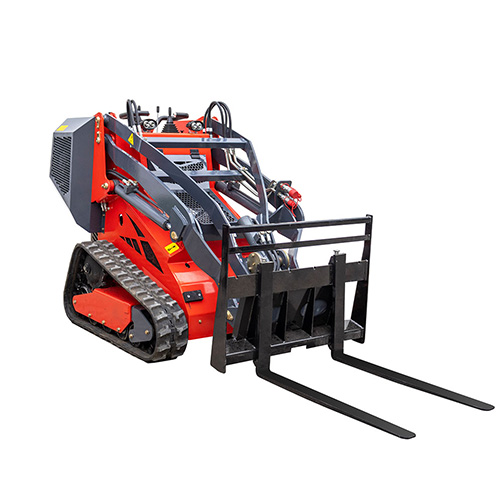

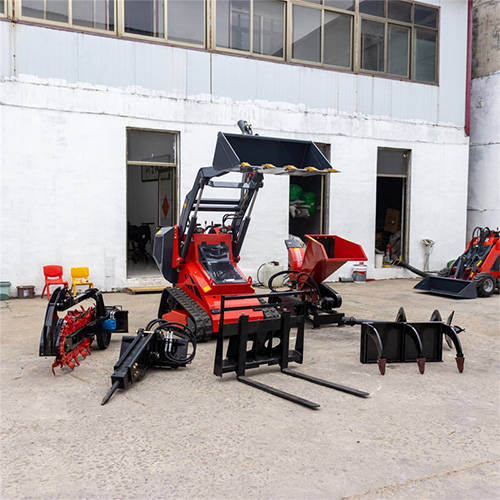

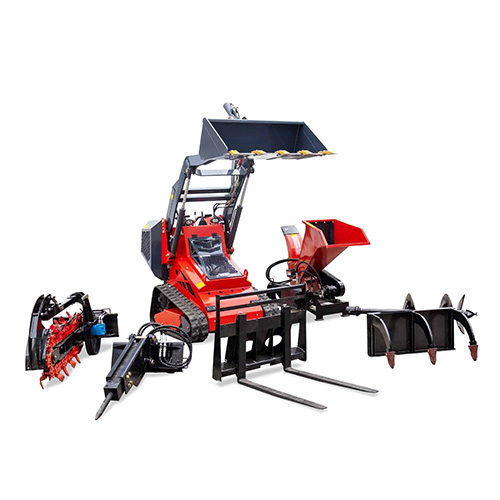

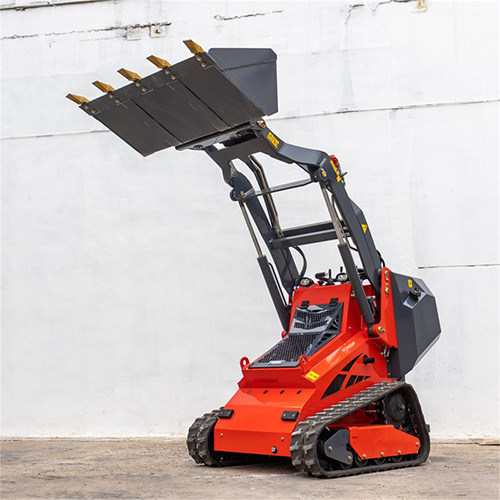

HTS450 which can quickly connect several accessories to achieve different jobs, one machine is multi-purpose, with forklifts, excavators, trenchers, augers,cultivators, sweepers, snow blowers, excavators, drilling machines, crushers have the same functions.
| Performance Parameters | Working Parameters | ||
| Maximum working height | 2474 mm | Rated power (KW) | 18.2KW(23HP) |
| Maximum pin height | 1977 mm | Speed (rpm) | 3600 |
| Maximum tipping height | 1275 mm | Noise (Db) | ≤95 |
| Maximum tipping distance | 175 mm | Pressure (Mpa) | 17 |
| Maximum dumping angle | 70° | Lifting | 4 |
| Bucket turning angle on the ground | 25° | Tipping | 1.3 |
| Ground clearance angle | 23° | Lowering | 3.2 |
| Total height | 1300 mm | Working load | 390 Kg |
| Ground clearance | 120 mm | Bucket capacity | 0.13 m³ |
| Wheelbase | 890 mm | Maximum lifting force | 450 Kg |
| Overall length without bucket | 1767 mm | Travelling speed | 0-4.5Km/h |
| Overall width | 1030 mm | Working weight | 960 Kg |
| Bucket width | 1070 mm | Forward turning radius | 1440 mm |
| Overall length with bucket | 2319 mm | Overall length without bucket with pedals folded down | 1633 mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
