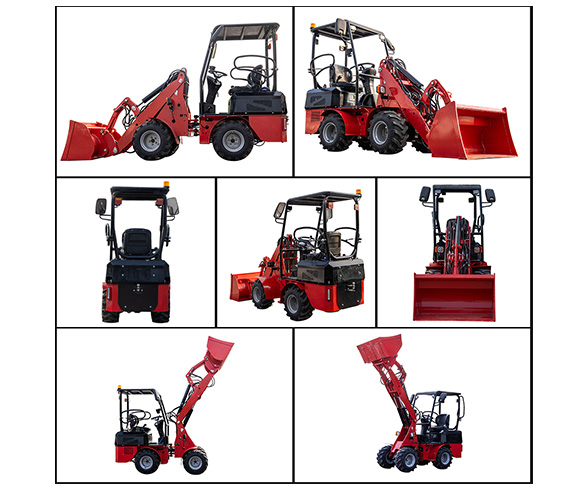

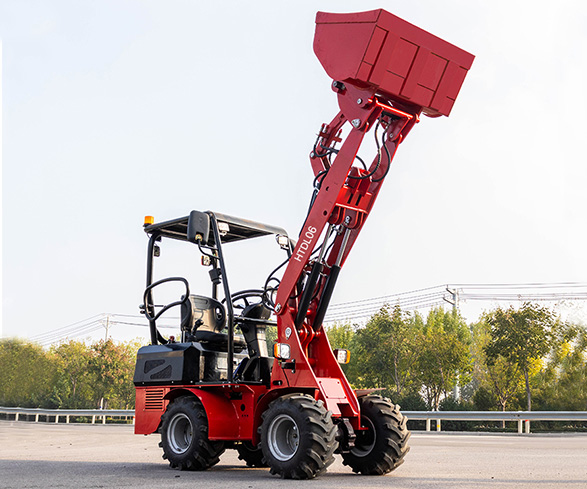

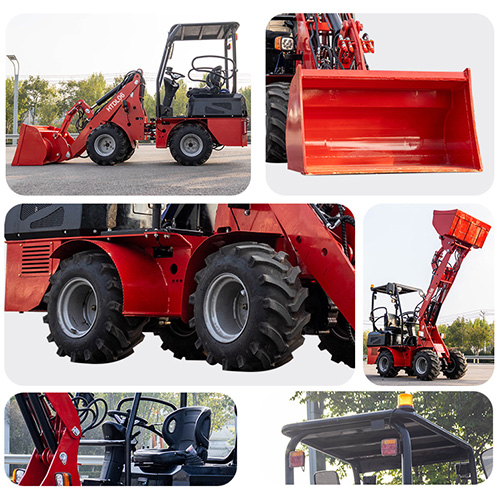

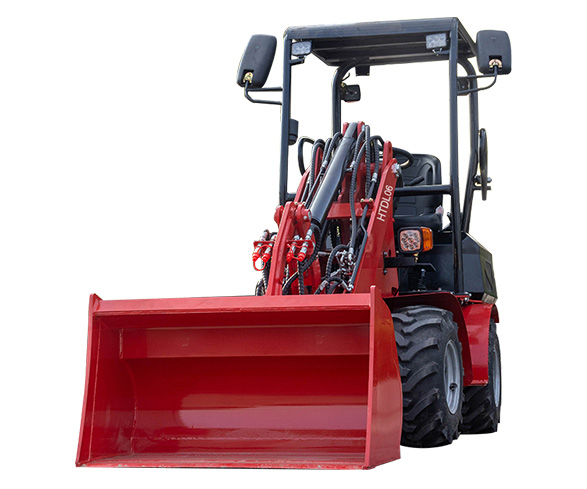

Wheel loaders are equipped with four large wheels, suitable for driving on solid roads. The wheeled chassis can effectively provide traction and is more suitable for high-speed movement than crawler chassis.

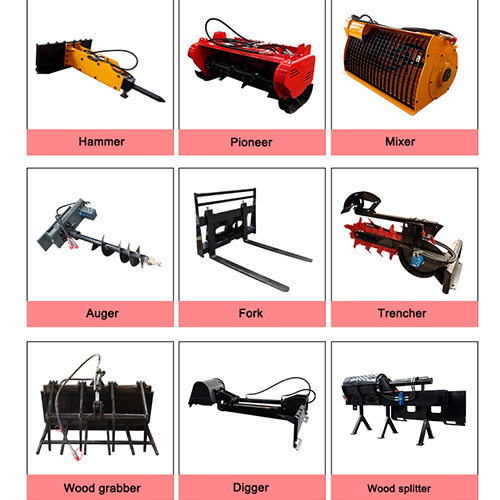

The working device mainly includes bucket, digging arm, rotary platform, etc., which are used to complete earth excavation, material loading and unloading, stacking and other tasks. The working device can usually be equipped with different types of attachments, such as grab, clamp, forklift, etc., to meet different operating requirements.
| Performance Parameters | Working Parameters | ||

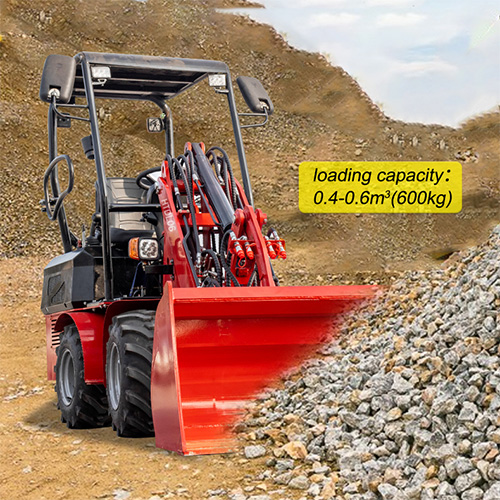

| Bucket capacity M³ | 0.4~0.6m³ | Length X Width X Height (AxLxC) | 3820mmx1170mmx2250mm |
| Rated load | 600kg | Minimum ground clearance (D) | 95mm |

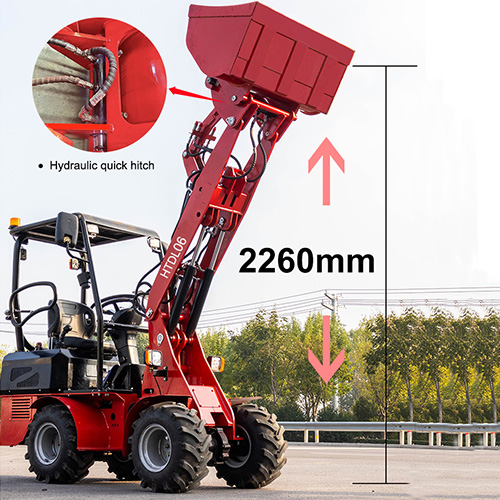

| Maximum traction | 7.5KN | Maximum unloading height (E) | 2260mm |
| Travel speed | 0-10km/h | Corresponding unloading distance (G) | 1100mm |
| Model | Kubota D1105 | Unloading Angle (J) | 23° |
| Type | Vertical, water-cooled, 4-cycle diesel | Steering Angle (O) | 35° |
| Number of cylinders | 3-cylinder | Horizontal pass radius (outside of bucket（P） | 2880mm |
| Rated power | 18.2KV | Minimum turning radius （Q） | 2540mm |
| Rated speed | 3000r/min | Weight | 2000kg |
| Fuel oil | 25L | engine | 5L |
| Hydraulic oil | 50L | Drive axle | 3L |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
