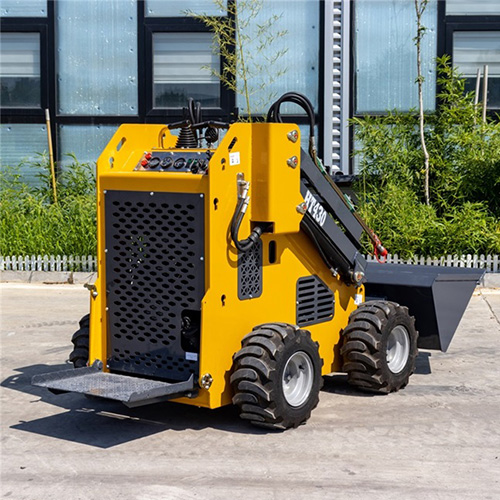

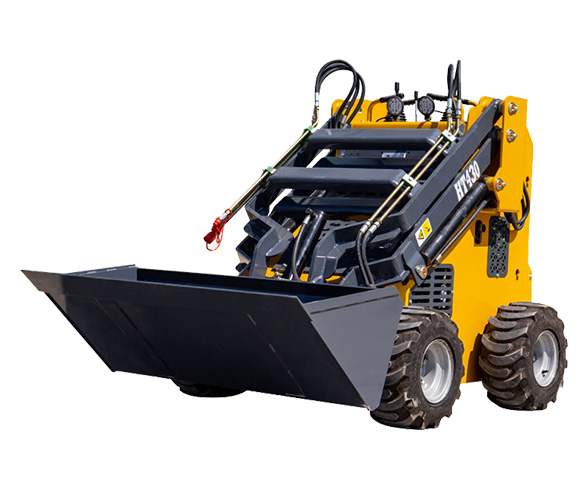

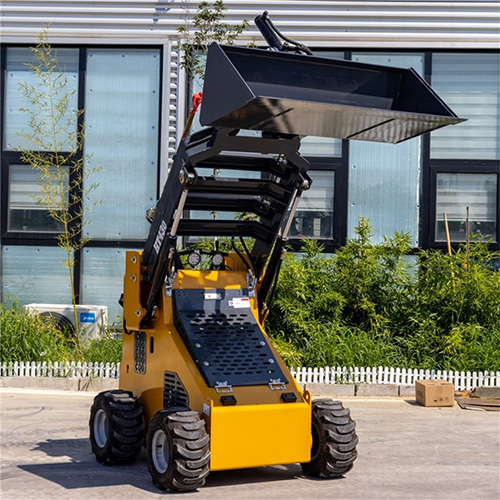

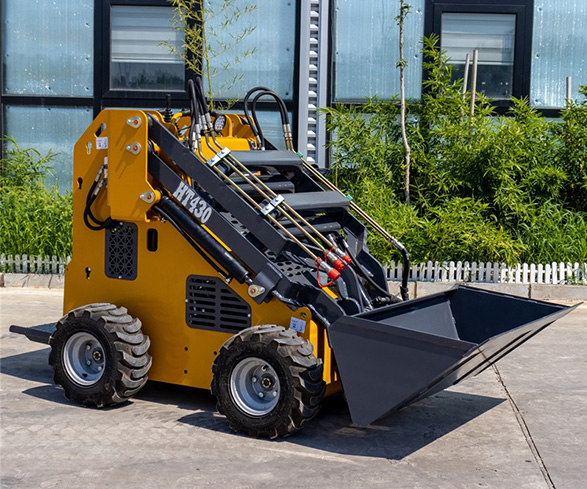

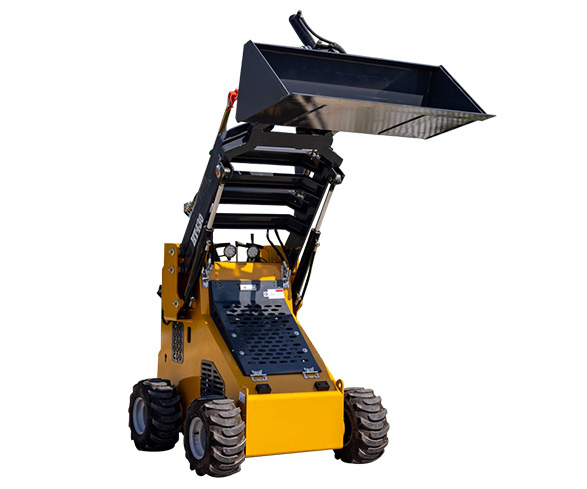

The HT430 is a compact wheeled small skid steer loader. The HT430 skid steer loader has a quick connection mounting plate so that users can easily connect different accessories. Such as snow throwers, double ditchers, wood chippers, snowboards, snow shovels and so on
HT430 wheel skid steer loader is used in earthmoving transportation and construction work environments, which can carry out heavy work such as digging, ditching, turning soil and handling materials.
mini skid steer loader is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable multifunctional tools, it can finish all kinds of comprehensive construction demand easily. The appearance, height lifting, weightlifting and driving comfort are all the top-notch loader in the world.
| Performance Parameters | Working Parameters | ||
| Loading capacity | 430Kg | Maximum working height | 2400mm |
| Bucket volume | 0.17m³ | Maximum pin height | 2200mm |
| Maximum lifting force | 430Kg | Maximum discharge height | 2000mm |
| Speed | 0-7 Km/h | Maximum discharge distance | 800mm |
| Net weight | 950Kg | Bucket swing angle | 55° |
| Climbing angle | 20° | Bucket discharge angle | 40° |
| Nominal speed (rpm) | 3600 | Departure angle | 20° |
| Fuel tank volume (L) | 30 L | Total height | 1350mm |
| Hydraulic oil tank volume (L) | 20 L | Ground clearance | 100mm |
| System pressure(Mpa) | 25MPa=250bar=3626psi | Wheelbase | 860mm |
| Standard flow rate(L/Min) | 33L/min | Length without bucket | 2020mm |
| Travelling pump flow(L/Min) | 75L/min | Overall width | 1200mm |
| Flow rate of replenishment pump(L/Min) | 10L/min | Bucket width | 1200mm |
| Working system(L/Min) | 44L/min | Overall length (with bucket) | 2600mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
