Skid steer loader is one of the most well-known mini improvement gear in the world. Relying on its flexible steer, compact physique and replaceable multifunctional tools, it can quit all varieties of entire improvement demand easily. The appearance, height lifting, weightlifting and using remedy are all the top-notch loader in the world.

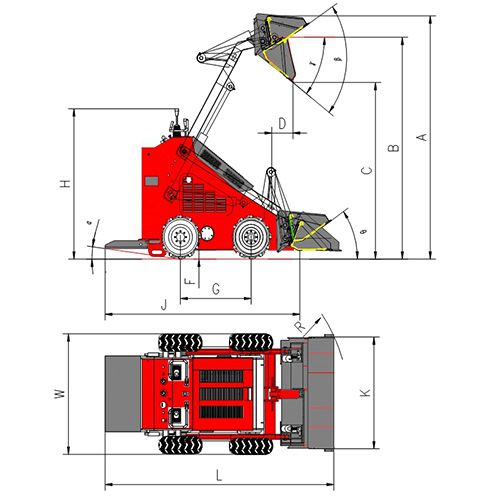

| Performance Parameters | Working Parameters | ||
| Rated Power | 16Kw/3600rpm | Maximum working height | 2120mm |
| Rotation speed | 3600 | Maximum loading height | 1865 mm |
| Pressure | 0-17 | Maximum unloading height | 1405 mm |
| Appliance flow rate | 0-21.6L | Maximum tipping distance | 575mm |
| Working load | 300 Kg | Maximum unloading angle | 37° |
| Bucket capacity | 0.15m³ | Total height | 1350 mm |
| Maximum lifting force | 380 Kg | Ground clearance | 121 mm |
| Travelling speed | 0-4.5Km/h | Overall length without bucket | 1495 mm |
| Working weight | 890 Kg | Overall width | 1021 mm |
| Fuel tank | 20L | Bucket width | 1150mm |
| Engine oil | 1.7L | Overall length with bucket | 2245 mm |
| Hydraulic oil tank | 37 | Folding tread without bucket overall length | 1990 mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
