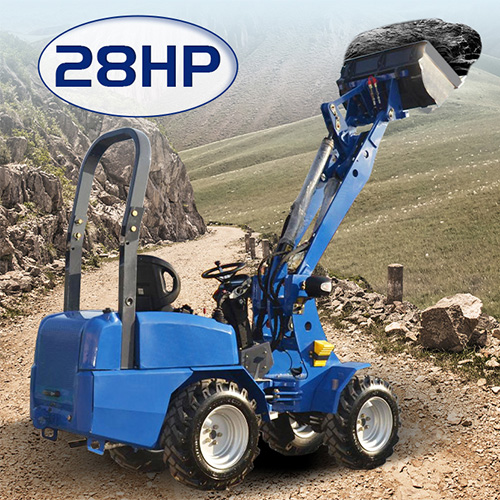

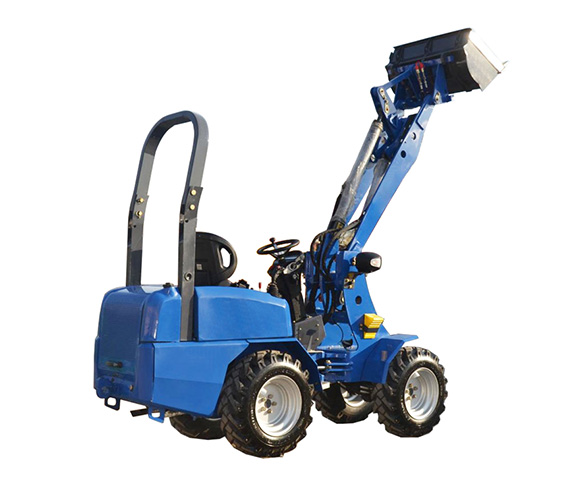

HT180 combines small size with powerful power. Whether your business is agriculture, landscaping, aquaculture, construction or any other place that requires aerial work, HT180 is your best choice!
Due to its high flexibility, strong adaptability and fast driving speed, it is widely used in mines, construction sites, road construction, ports and other fields. Wheel loaders combine the efficient operation of construction machinery with the maneuverability of wheeled vehicles, and are particularly suitable for work occasions that require frequent movement and crossing different sections.
Wheel loaders are engineering machinery with wheeled chassis, mainly used for earthwork, material handling, stacking, excavation, loading and unloading and other operations.
| Performance Parameters | Working Parameters | ||
| Tread | 890mm | Rated Load | 900kg |
| Min.Ground clearance | 220mm | Bucket Capacity | 0.3m3 |
| Net weight | 2100kg | Lifting Height of main boom | 2959mm |
| Engine model | 3TNV88-G1 | Dumping Height of main boom( dumping angle 45°) | 2051mm |
| Type | Water cooled | Dumping reach of main boom | 587mm |
| Rated Power | 19kw | Max. Loading capacity of main boom | 1000kg |
| Rated Speed | 2200r/min | Lifting height of small boom | 3526mm |
| Max.Torque | 98.7N.m | Dumping height of small boom (dumping angle 45°) | 2618mm |
| Speed at Max.Torque | 1320r/min | Dumping reach of small boom | 1085mm |
| Number of cylinders | 3 | Max. Loading capacity of small boom | 600kg |
| Bore& stroke | 88*90 | Max.Speed(F1/R1) | 12km/h |
| displacement | 1.642L | Max.Traction force | 16.66KN |
| Rated fuel consumption | <230 | Max.Breakout Force | 15KN |
| Pump Pressure | 28MPa | Digging Deep | 65mm |
| Axle | bevel gear reduction | Max.Gradeability | 25° |
| Main drive reduction ratio | 3.75 | Max. Turning angle | 35° |
| Driving | 4 wheel drive | Overall length (bucket on ground position) | 3820mm |
| Tire | 10.0/75-15.3 | Overall width | 1260mm |
| Oil flow | 13.8ml/r | Overall Height | 2310mm |
| Steering pump type | Gear pump | Wheel base | 1507mm |
