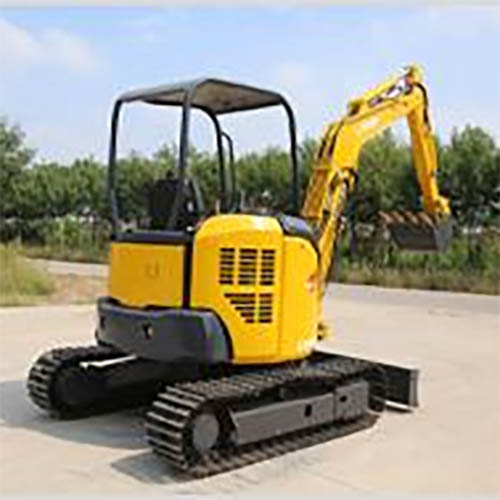

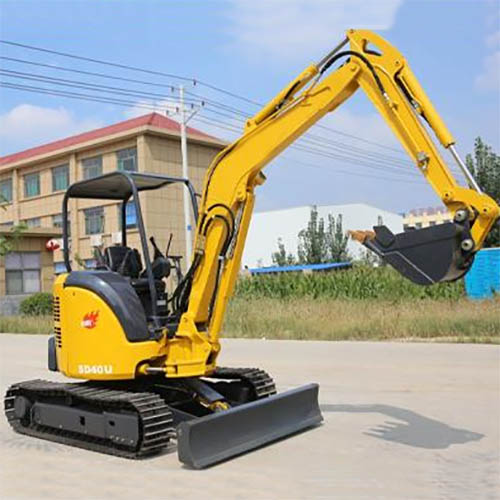

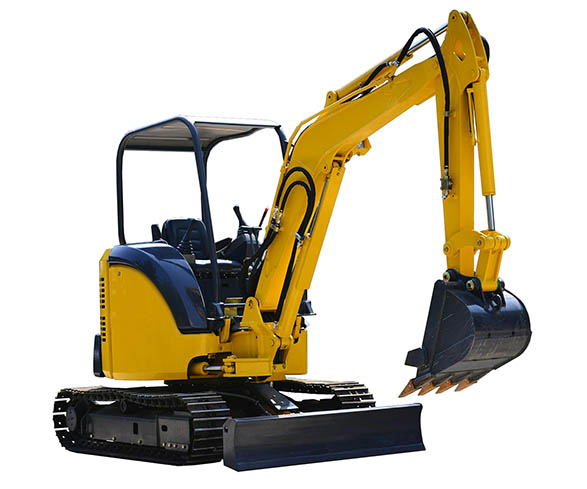

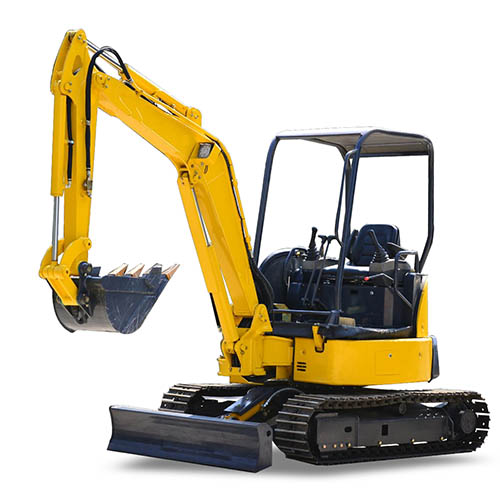

SD40U tracked excavator, continuously variable speed, hydraulic walking The cab can be equipped with air conditioning for a more comfortable working environment. The original imported hydraulic system has coordinated action and high reliability. Tailless rotation, smooth operation in narrow spaces. Easy to inspect and repair tilting structure and fully open hood.

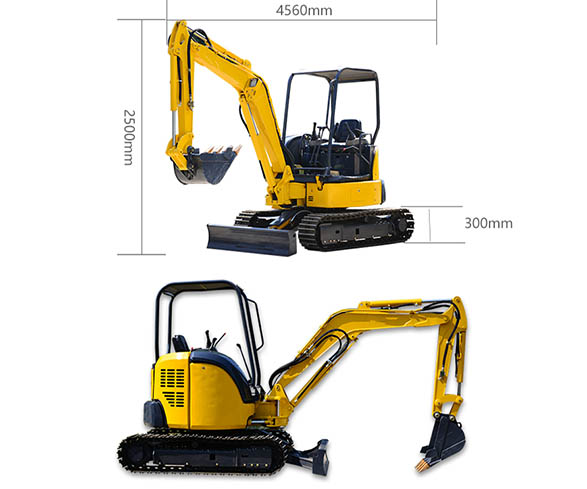

| Performance Parameters | Working Parameters | ||
| Overall weight | 3650Kg | Total length | 4600mm |
| Bucket capacity | 0.2m³ | Total width | 1700mm |
| Bucket width | 600mm | Total height | 2400mm |
| Model | SD40U | Platform turning radius | 1170mm |
| rated power | 34KW | Track length | 2175mm |
| speed | 2400r/min | Track width | 300mm |
| hydraulic system pressure | 22MPa | Track gauge | 1620mm |
| Maximum climbing angle | 35° | boom length | 2350mm |
| ground pressure | 34.8kpa | arm length | 1230mm |
| Maximum driving speed | 2.7/4.6Km/h | Ground clearance | 260mm |
| Maximum excavating force | 26KN | Platform width | 1550mm |
| rotation speed | 9-11rmp | Hood height | 1300mm |
| Maximum excavation height | 4500mm | Platform ground clearance | 570mm |
| Maximum Dumping Height | 3050mm | Minimum radius | 1820mm |
| Maximum Digging Depth | 3100mm | Maximum sinking depth of bulldozer | 270mm |
| Maximum digging radius | 4730mm | Maximum lifting height of bulldozer | 350mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
