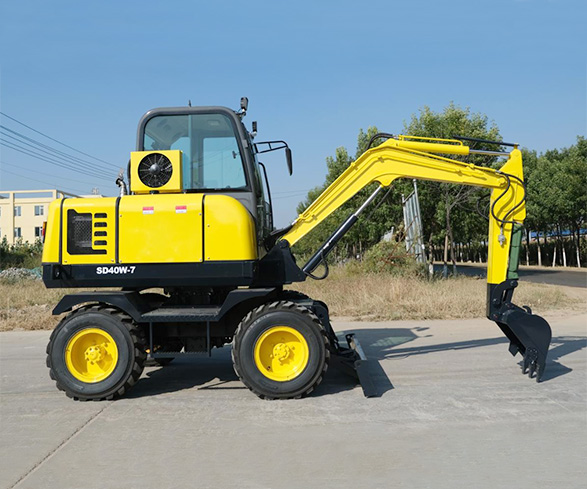

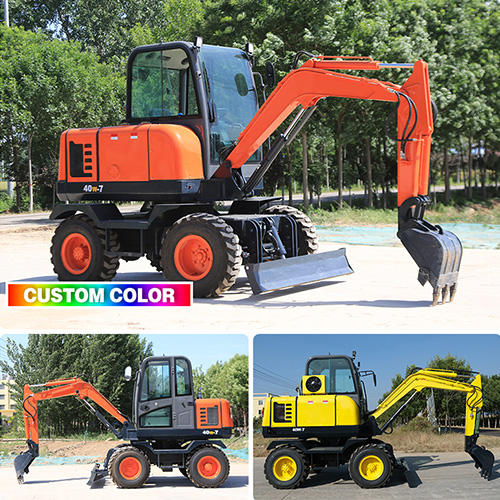

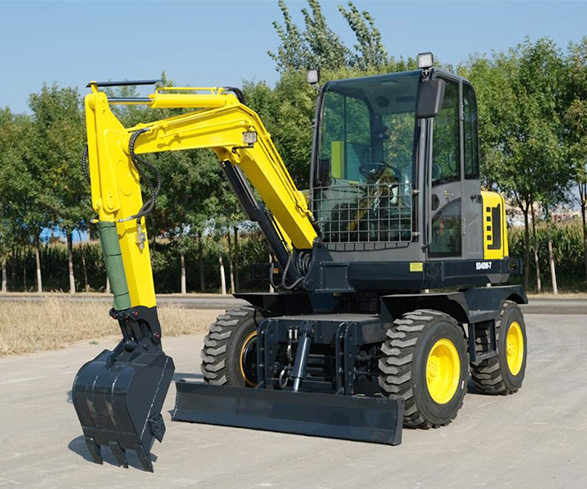

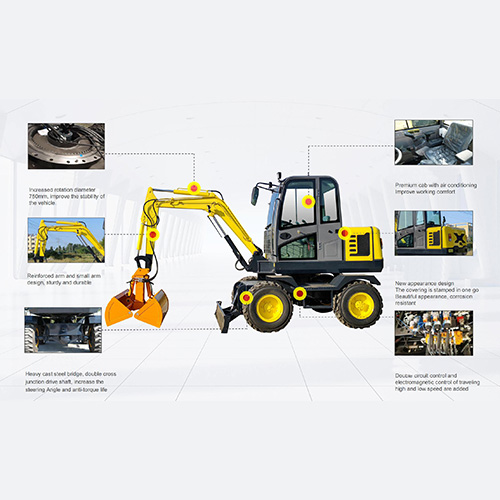

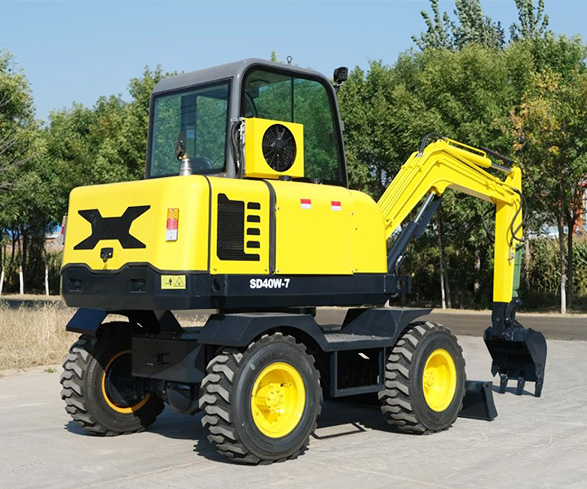

SD40W-7 is equipped with an imported hydraulic system; Laidong engine, rated power 34kw; Continuously variable speed, hydraulic walking, comfortable operation, powerful climbing; Wheel excavator SD40W-7, with air conditioning in the cab Continuously variable speed, hydraulic travel, customizable colors.
| Performance Parameters | Working Parameters | ||
| Machine weight | 3500Kg | Maximum excavation height | 4500mm |
| A surname | 0.15m² | Maximum unloading height | 2800mm |
| Engine power | 36.8KW | Maximum digging depth | 2200mm |
| Rated speed | 2400r/min | Maximum excavation radius | 4400mm |
| Hydraulic system pressure | 18MPa | Maximum surface horizontal excavation distance | 3700mm |
| Maximum digging force | 500kg | Excavation radius of maximum excavation height | 2200mm |
| Product Model | SD40W-7 | Angle of rotation of excavator | 360° |
| Travel speed | 10Km/h | Platform turning speed | 9-12r/min |
| Walking mode | tyred | Push shovel up height | 235mm |
| Travelling transmission mode | Hydraulic/Mechanical | Shovel drop depth | 150mm |
| Front track | 1560mm | Overall length | 3600mm |
| Rear track | 1500mm | Overall width | 1860mm |
| Ground lift | 220mm | Total height | 2700mm |
| Cab length * width * height | 1200*1000*1500mm | wheelbase | 1570mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
