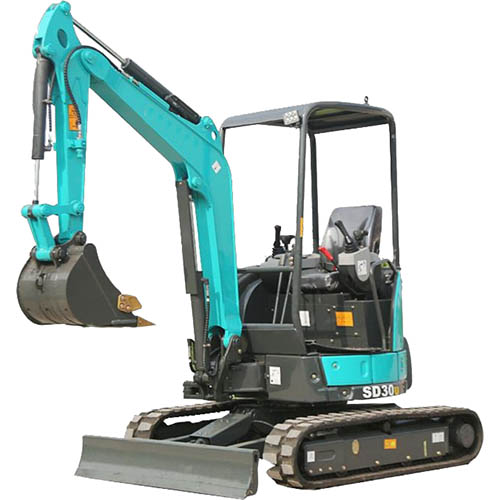

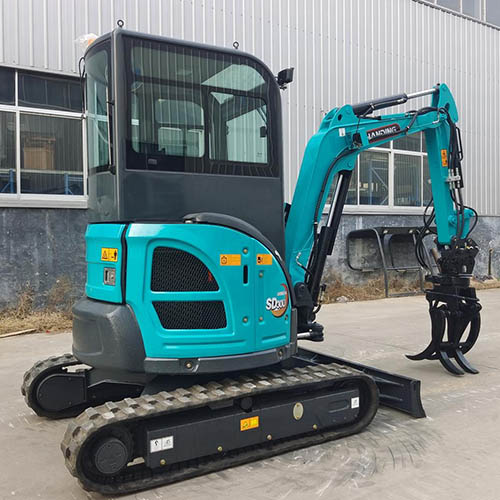

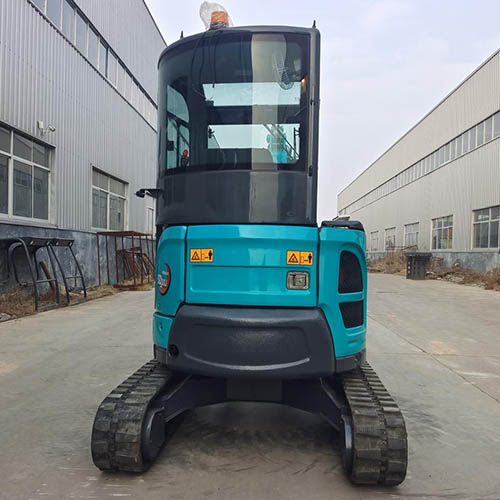

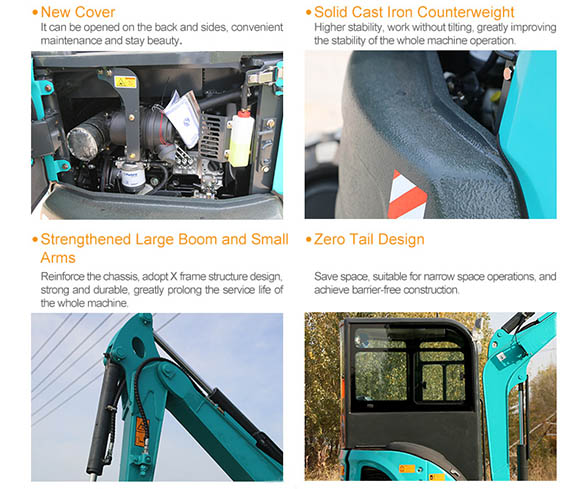

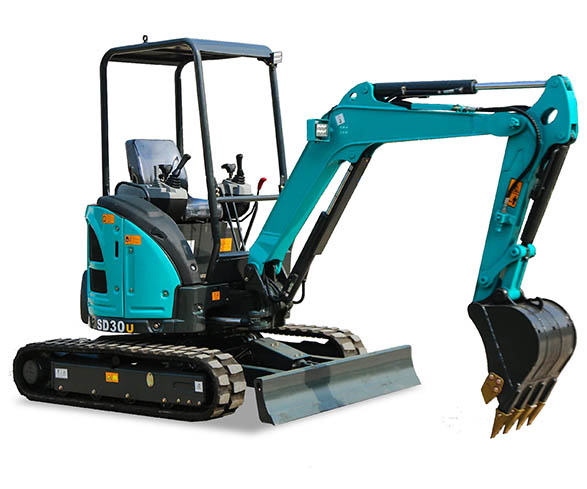

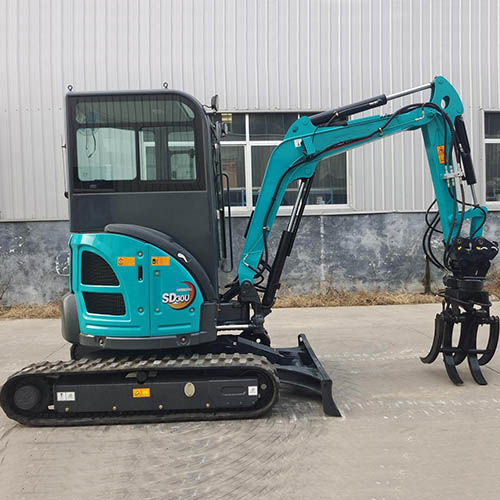

The SD30U small excavator is an efficient model with stable system, strong power, and a wide range of applications with large arm side sway function.Open hood for easy daily maintenance and repair. Solid cast iron counterweight for higher stability The reinforced large and small arm design is sturdy and durable, greatly extending the service life of the entire machine.
| Performance Parameters | Working Parameters | ||
| rated power | 14.7KW | Total length | 4050mm |
| Product Model | SD30U | Total width | 1540mm |
| Bucket capacity | 0.075m³ | Total height (to the top of the boom) | 1380mm |
| Bucket width | 460 mm | Total height (to the top of the cab) | 2360mm |
| Maximum excavation height | 3865mm | Ground clearance of counterweight | 485mm |
| Maximum Dumping Height | 2760mm | Ground clearance | 255mm |
| Maximum Digging Depth | 2560mm | Tail swinging radius | 710mm |
| Maximum vertical excavation depth | 2440mm | Track grounding length | 1530mm |
| Maximum excavation distance | 4375mm | Track length | 1895mm |
| Maximum digging radius | 4275mm | Track gauge | 1510mm |
| Bucket digging force | 18.6 KN | track shoe width | 250mm |
| operating weight | 2870kg | Rotate Frame Width | 1350mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
