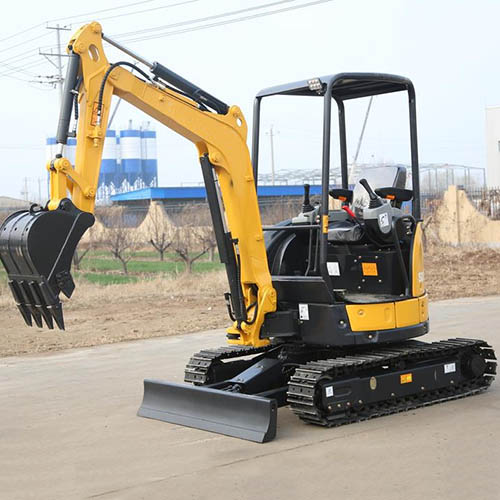

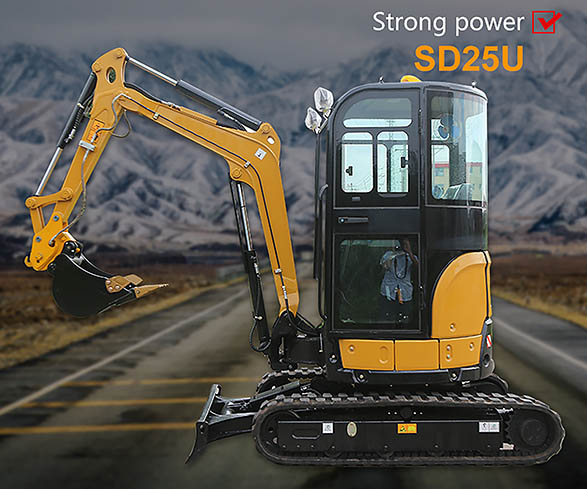

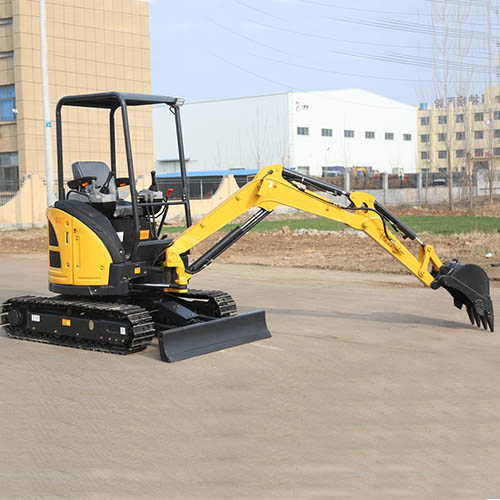

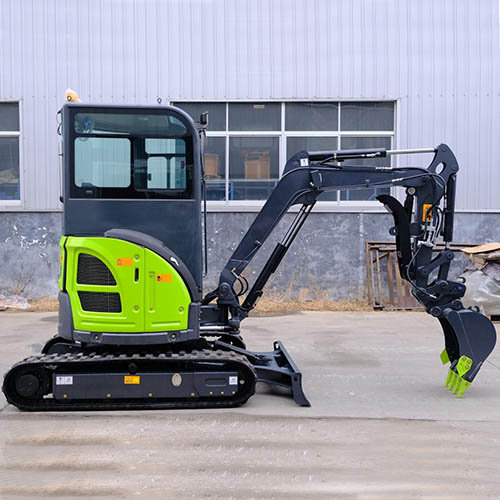

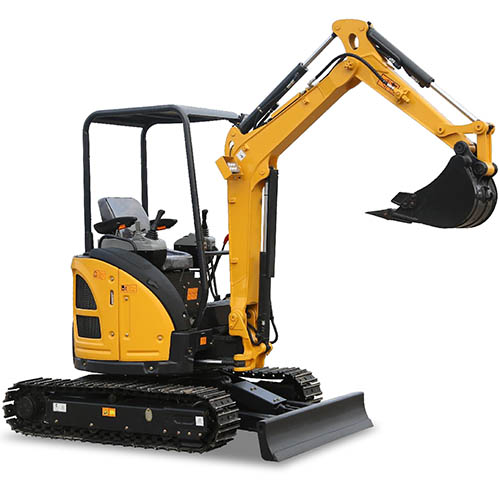

SD25U small excavator, can choose from a driver’s cabin or a driving shedWidely used in orchard nurseries, landscaping,mountain reclamation, farmland renovation, indoor demolition and other operations.

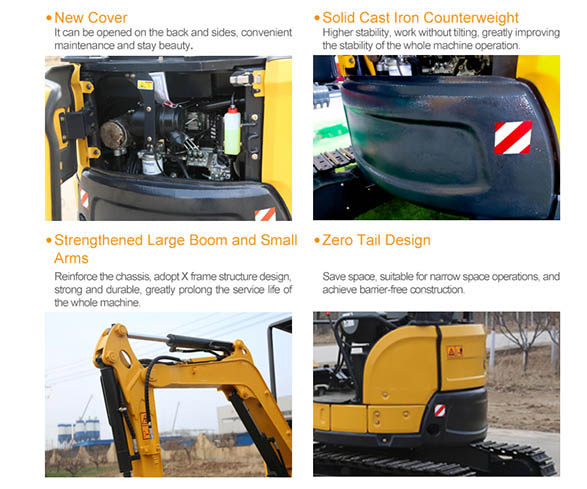

Open hood for easy daily maintenance and repair. Solid cast iron counterweight for higher stability
The reinforced large and small arm design is sturdy and durable, greatly extending the service life of the entire machine
| Performance Parameters | Working Parameters | ||
| Overall weight | 2420Kg | Total length | 3950mm |
| Bucket capacity | 0.1m³ | Total width | 1400mm |
| Product Model | SD25U | Total height | 2300mm |
| rated power | 14.7KW | Minimum rotation radius | 790mm |
| Platform speed | 2200r/min | Track length | 1870mm |
| Maximum hydraulic system pressure | 18MPa | track width | 250mm |
| Maximum climbing angle | 30° | Ground clearance | 250mm |
| ground pressure | 35kpa | Platform width | 1330mm |
| Maximum driving speed | 2.5-3.5Km/h | Hood height | 1350mm |
| Maximum traction force | 16KN | Platform ground clearance | 480mm |
| MaxPlatform speed | 11rmp | Maximum excavation height | 4300mm |
| Maximum excavating force | 15KN | Maximum Dumping Height | 2530mm |
| Number of tracks on one side | 44件 | Maximum Digging Depth | 2550mm |
| boom length | 1950mm | Maximum digging radius | 4150mm |
| arm length | 950mm | Excavation radius for maximum excavation height | 2700mm |
| Bucket width | 450mm | minimum radius | 1800mm |
