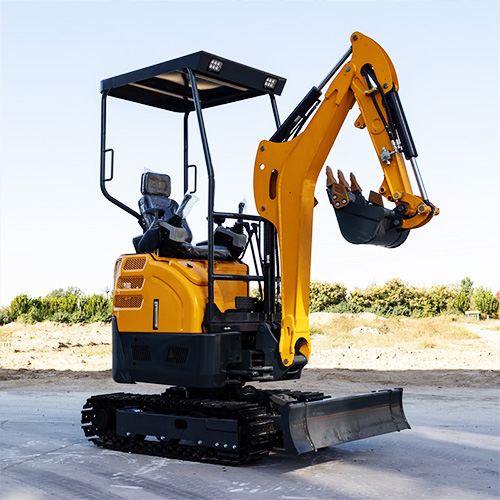

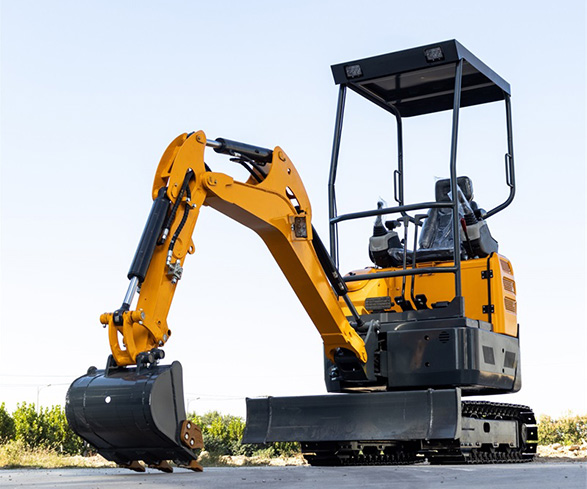

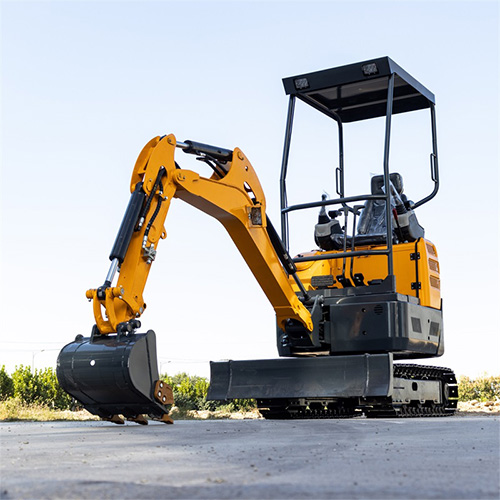

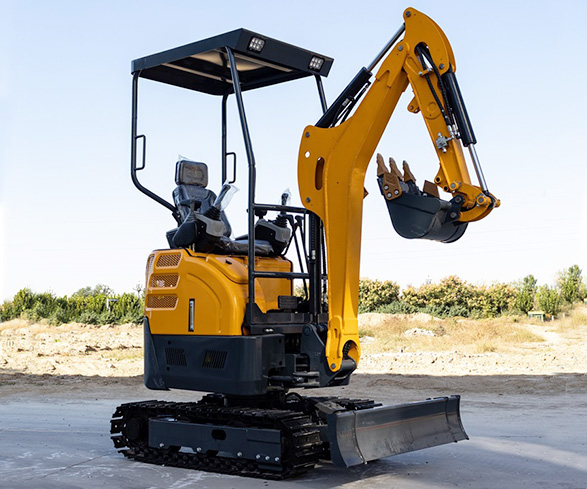

2.2T mini excavator Fuel saving, super power Energy saving and environmental protection. Compact design, low fuel consumption, suitable for engineering, small projects, gardens, farmland, municipal works, vegetable greenhouses and trench digging. Small engine, simple design, easy to maintain.
| Performance Parameters | Working Parameters | ||
| Working mass(KG) | 2172kg | Overall length/transport length | 4750mm |
| Bucket capacity | 0.056m³ | Total width | 990mm/1300mm |
| Product Model | HT22 | Upper width | 1050mm |
| Turning speed | 9.5r/min | Overall height (cab roof) | 2470mm |
| Climbing capacity | 58% | Standard track plate width | 230mm |
| Engine | D1105 | Track gauge | 780mm/1090mm |
| Flow sharing main valve | TRM10-BX-09-JNJT-01 | Minimum ground clearance | 150mm |
| Swash plate axial piston variable pump | TFA10VO28/53R | Tail turning radius | 780mm |
| Travelling motor | Axial Variable Piston Motor KTD-490 | Track ground length | 1200mm |
| Fuel tank | Capacity 21L | Track length | 1500mm |
| Cooling system | Capacity 5.05L | Maximum digging height | 3365mm |
| Hydraulic oil tank | Capacity 21.4L | Maximum unloading height | 2385mm |
| Maximum blade lift height | 230mm | Maximum digging depth | 2050mm |
| Maximum blade cutting depth | 275mm | Maximum vertical digging depth | 1725mm |
| Swinging angle of arm (left) | 75° | Max. digging radius | 3860mm |
| Swing angle of movable arm (right) | 45° | Minimum turning radius | 1720mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
