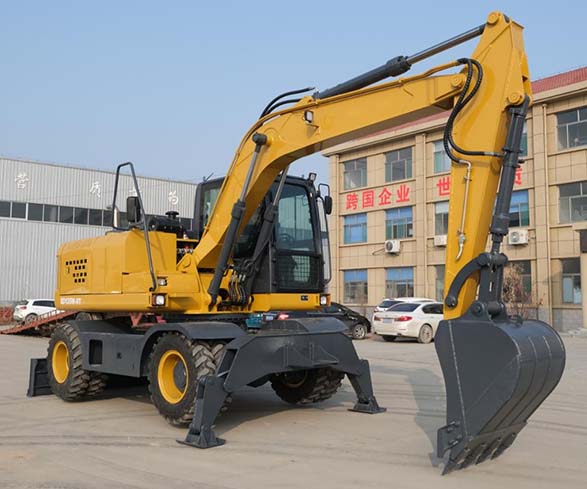

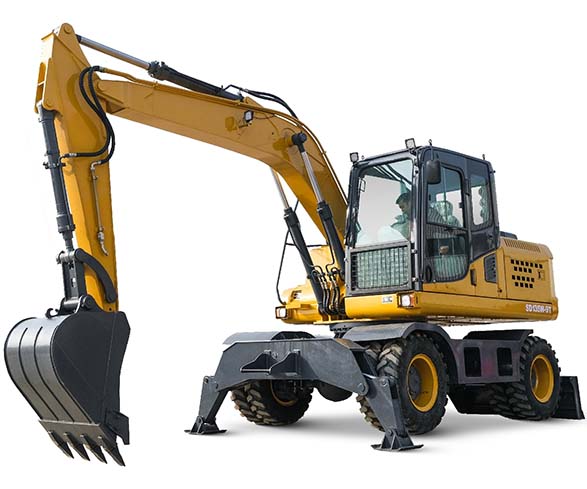

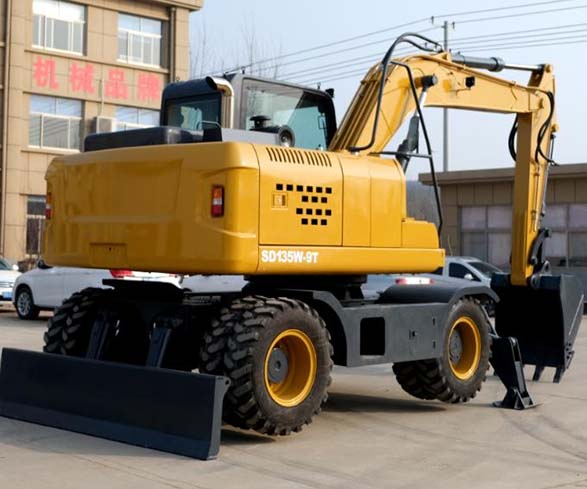

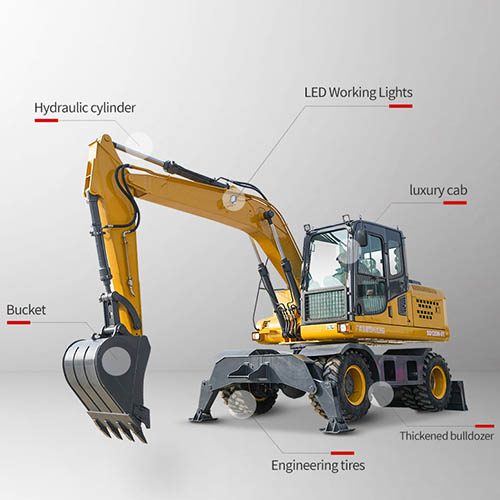

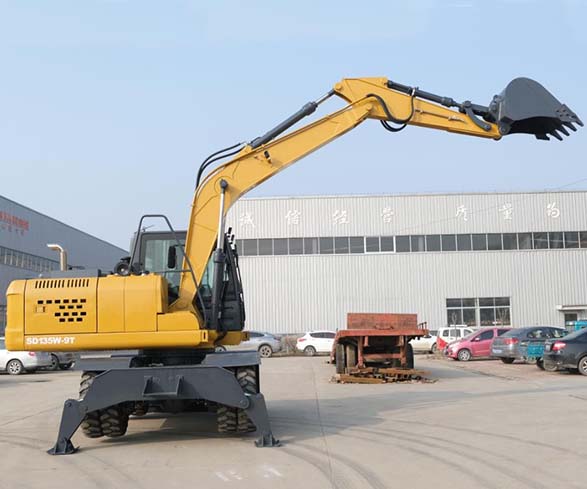

SD135W-9T excavator weighs 11000kg,Assembled with Cummins engine, rated power 75KW、Bucket capacity 0.6m ³。
Powerful and stable operation, in line with the new generation of ergonomic working environment, achieving a multi-purpose excavator with one machine.
The arm is made of high-strength manganese steel, and the surface is shot blasted to remove rust, pickled and phosphated, which is more corrosion-resistant.
Performance Parameters | Working Parameters | ||
Operating weight | 13000kg | Track type | Tyre 900 |
Bucket capacity | 0.7cbm | Closed cab | With cold and warm air conditioning |
Operating mode | teering wheel | Climb ability | 35° |
Bucket width | 1000mm (Any size can be customized ) | Bucket digging force | 53kn |
Product Model | SD135W | Arm digging force | 45.1kn |
Pump | Shimadu | Total (length*width*height) | 8000x2400x3300mm |
Valve | EATON | Platform ground distance | 1400mm |
Walking motor | JK | Backspin radius of platform | 2720mm |
Rotary motor | JK | Chassis width | 2300mm |
Cylinder | Four cylinder, Water cooling | Max.digging depth | 4900mm |
Walking speed | 35km/h | Max.digging height | 8100mm |
Min.radius of gyration | 2350mm | Max.digging radius | 9500mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
