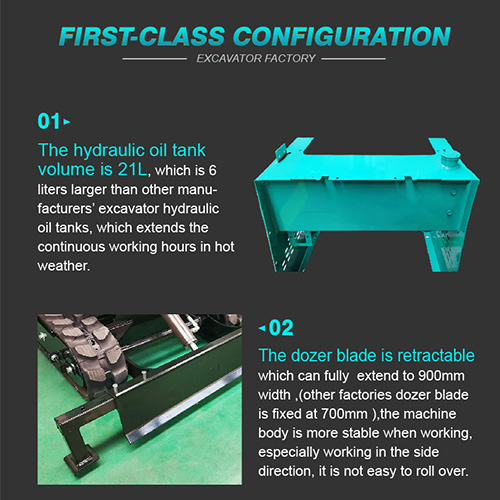

The hydraulic oil tank capacity of this mini excavator is 21L, which is 6L larger than other excavator hydraulic oil tanks, extending the continuous working time in hot weather.
It is a compact excavator with a width of only 82cm, which can easily pass through most doorways and allow access to the interior of buildings.
We have agents in Europe, America and other regions, and we can customise the logo, optional engine and so on according to customers' requirements. Beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range.
| Performance Parameters | Working Parameters | ||
| Rated power | 12HP | Total width | 8800mm |
| Bucket capacity | 0.025 m3 | Total Height | 1380-1980mm |
| Product Model | PC101 | Overall length | 2600mm |
| Weight | 780 kg | Minimum Ground Clearance | 100mm |
| Maximum digging force | 7.5KN | Track length | 1140mm |
| Pump type | Single gear pump | Track width | 150mm |
| Working Pressure | 14Mpa | Maximum digging distance | 2750mm |
| Slewing speed | 12 rpm | Maximum digging depth | 1450mm |
| Travelling speed | 2.2Km/h | Maximum digging height | 2600mm |
| Climbing capacity | 30° | Maximum unloading height | 1760mm |
| Grounding ratio pressure | 19Kpa | Minimum turning radius | 1100mm |
| Maximum support depth for bulldozer | 200mm | Max. ground clearance of bulldozer | 120mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
