The tailless excavator has the highest power and efficiency, strong power, low noise, and low fuel consumption, and meets T3 emission standards.

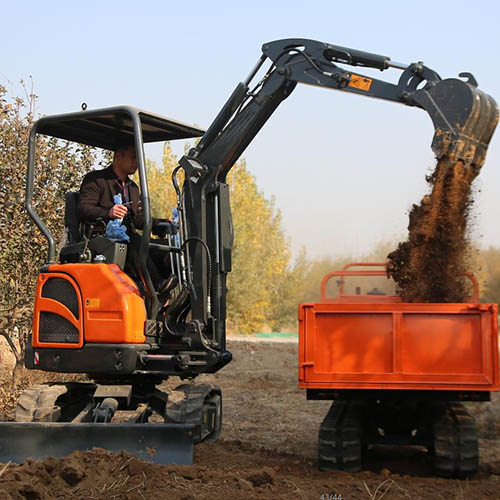

Used in roads, municipal, pipe networks, farmland, gardens, tunnels, mines, water conservancy, basements, orchards and other construction sites. It can be equipped with hydraulic breakers, wood grabs, rippers, rakes, augers and other operating devices Combined with its own rear swing, retractable track structure and boom side shifting function, you are more comfortable in the construction environment.
| Performance Parameters | Working Parameters | ||
| model | SD20U | Total length | 3050mm |
| Overall weight | 2.0T | Total width | 1100mm |
| Bucket capacity | 0.06m³ | Total height | 2200mm |
| rated power | 14.7kw | arm length | 920mm |
| Maximum hydraulic system pressure | 18mpa | boom length | 1650mm |
| Maximum climbing angle | 30° | Track length | 1420mm |
| Maximum driving speed | 2.8km/h | track width | 230mm |
| maximum traction force | 16kn | Platform width | 950mm |
| Platform speed | 14 r/min | Platform ground clearance | 440mm |
| Big arm side swing | optional | Bucket width | 440mm |
| Track extension and retraction | optional | Maximum excavation height | 3350mm |
| Maximum sinking depth of bulldozer | 195mm | Maximum Digging Depth | 2042mm |
| Maximum lifting height of bulldozer | 200mm | Maximum digging radius | 3600mm |
| Tail turning radius | 790mm | Maximum dumping height | 2250mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
