Optional canopy and cab configurations Imported engine, rated power 10.2KW Small tail design for flexible steering。
Tailless design, flexible steering, widely used in orchards, nurseries,
landscaping, farmland renovation, indoor demolition and other operations。
Optional canopy and cab configurations Imported engine, rated power 10.2KW Small tail design for flexible steering。 Tailless design, flexible steering, widely used in orchards, nurseries,landscaping, farmland renovation, indoor demolition and other operations.

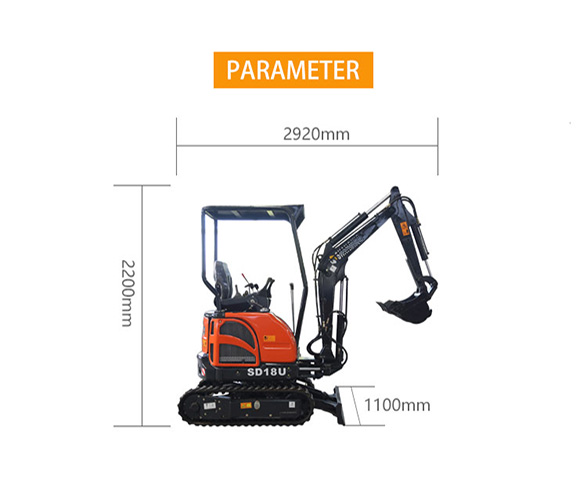

| Performance Parameters | Working Parameters | ||
| model | SD18U | Total length | 3050mm |
| Overall weight | 1.8t | Total width | 1100mm |
| Bucket capacity | 0.06m³ | Total height | 2200mm |
| Engine type | Yanmar 377 | arm length | 920mm |
| rated power | 14.7kw | boom length | 1650mm |
| Maximum hydraulic system pressure | 18mpa | Track length | 1420mm |
| Maximum climbing angle | 30° | track width | 230mm |
| Maximum driving speed | 2.8km/h | Platform width | 950mm |
| maximum traction force | 16kn | Platform ground clearance | 440mm |
| Platform speed | 14 r/min | Bucket width | 440mm |
| Big arm side swing | optional | Maximum excavation height | 3350mm |
| Track extension and retraction | optional | Maximum Digging Depth | 2042mm |
| Maximum sinking depth of bulldozer | 195mm | Maximum digging radius | 3600mm |
| Maximum lifting height of bulldozer | 200mm | Maximum dumping height | 2250mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
