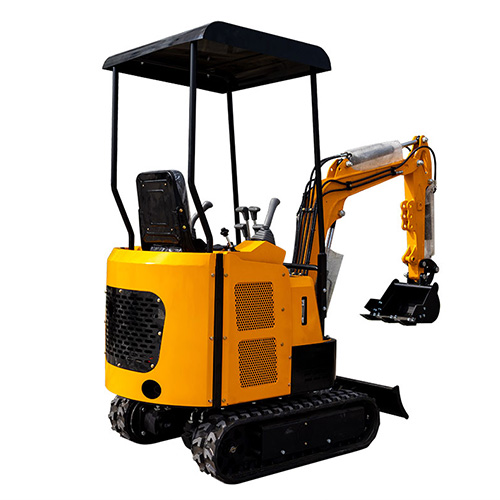

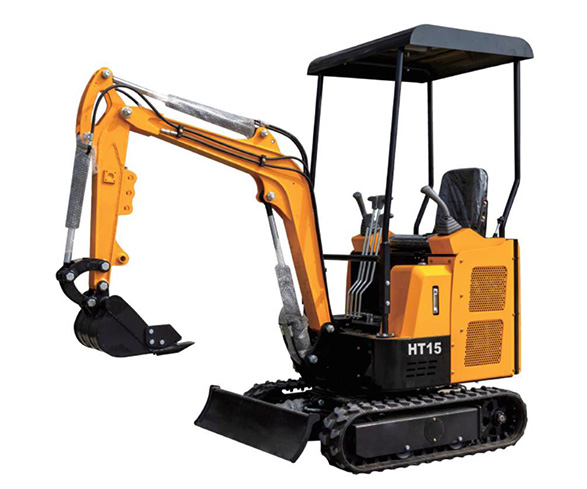

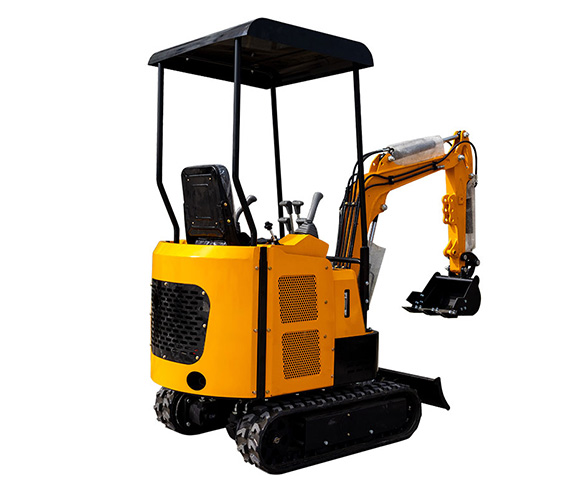

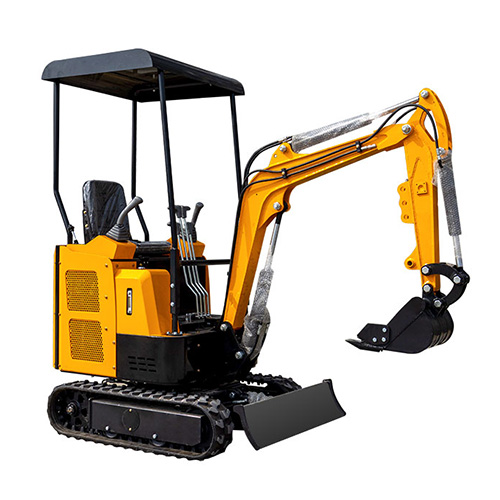

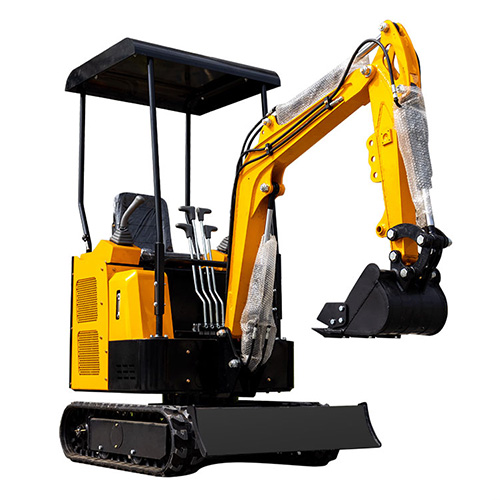

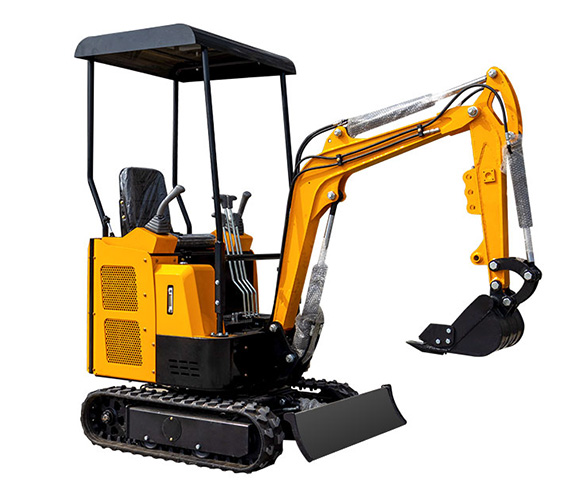

HT15 Mini Excavator Double cylinder water cool engine, hydraulic joystick.
For suppliers, we will provide you with enough profit margins, and we will provide 1-3 years of after-sales service for the products. We will provide you with testing before leaving the factory to ensure product quality. At the same time, we will promote you for free in your country and support customized colors and product trademarks.
| Performance Parameters | Working Parameters | ||
| Weight | 1500kg | Overall dimensions (LxWxH) | 2550x940x1380 mm |
| Bucket capacity | 0.025cbm/120kg | Track Gauge | 770mm |
| Bucket width | 380mm | Total length of track | 1090mm |
| Product Model | HT15 | Platform Ground Clearance | 380 mm |
| Bore Stroke | double cylinder water-cooled | Chassis width | 940 mm |
| Rated power | 14kw/3000r/min | Track width | 180 mm |
| Emission | 0.794 L | Track height | 320 mm |
| Travelling speed | 3.5km/h | Undercarriage Ground Clearance | 380 mm |
| Maximum digging radius | 2850 mm | Maximum digging depth | 1650 mm |
| Minimum turning radius | 1330 mm | Vertical digging depth | 1375 mm |
| Maximum lifting height of the shovel | 345 mm | Maximum digging height | 2610 mm |
| Max. digging depth | 255 mm | Maximum unloading height | 1850 mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
