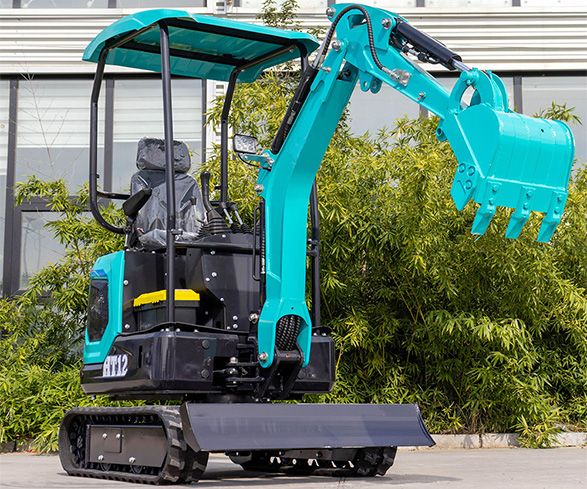

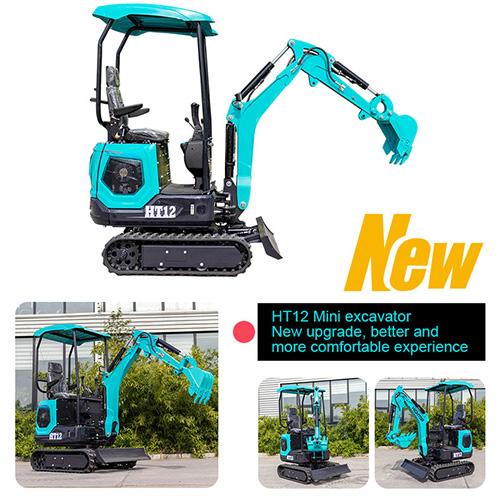

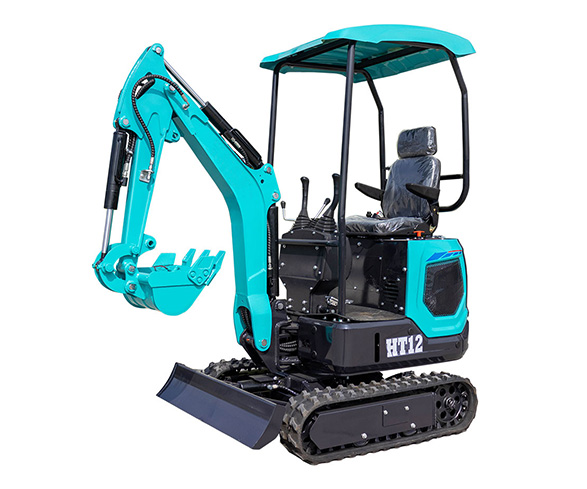

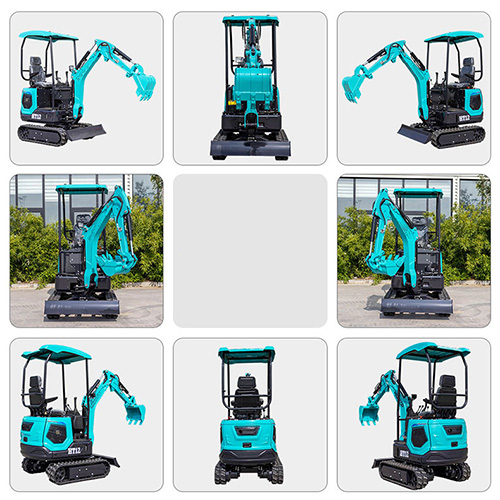

This Mini excavator is compact in size, very flexible, versatile, and highly efficient, making it very popular among users. small excavators have a small excavation volume and a very flexible movement trajectory, making them very suitable for urban infrastructure construction, public facilities, and house maintenance operations. The overall size of the excavator is very compact and its special design allows it to work in environments where large excavators cannot be used.
| Performance Parameters | Working Parameters | ||
| Weight | 1200kg | Overall dimensions (LxWxH) | 2775 x 930 x 2219 mm |
| Bucket capacity | 0.025cbm/120kg | Track Gauge | 910 mm |
| Bucket width | 380mm | Total length of track | 1230mm |
| Product Model | HT12 | Chassis width | 896 mm |
| Bore Stroke | Three cylinder water cooling | Track width | 180 mm |
| Rated power | 10.2kw/2500r/min | Track Height | 320 mm |
| Main pump | G5-6 | Ground clearance of undercarriage | 132 mm |
| Emission | 6.8ml/r | Maximum digging depth | 1650 mm |
| Travelling speed | 1.5km/h | Vertical digging depth | 1375 mm |
| Battery | 12V 60A | Maximum digging height | 2610 mm |
| Maximum lifting height of dozer | 345 mm | Maximum unloading height | 1850 mm |
| Maximum digging depth | 255 mm | Maximum digging radius | 2850 mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
