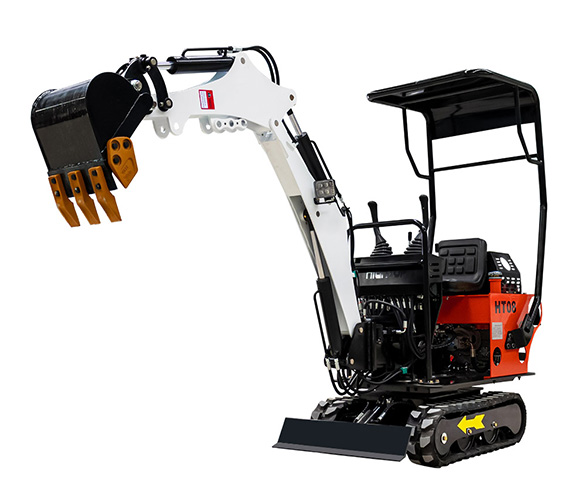

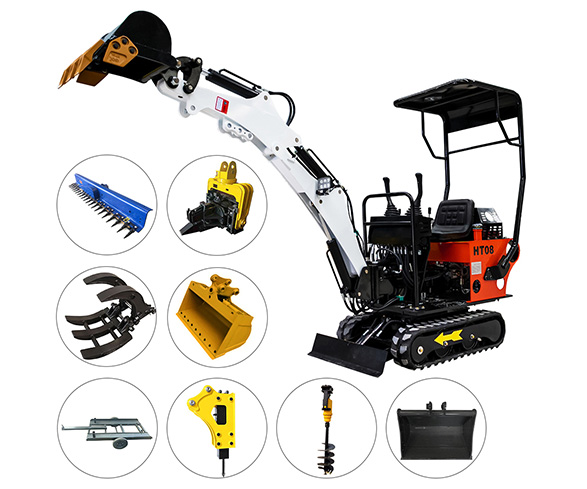

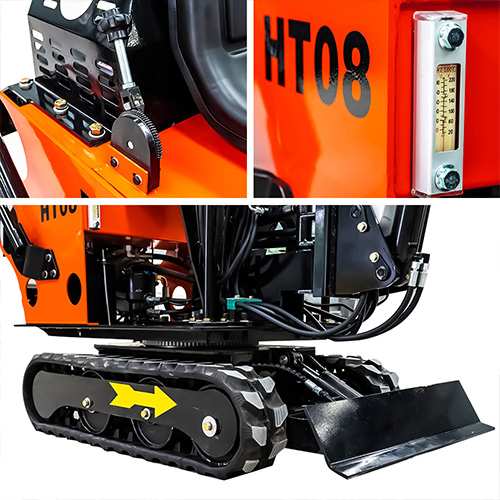

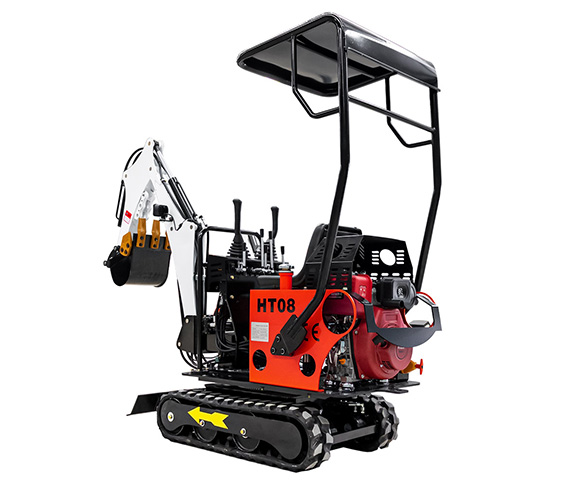

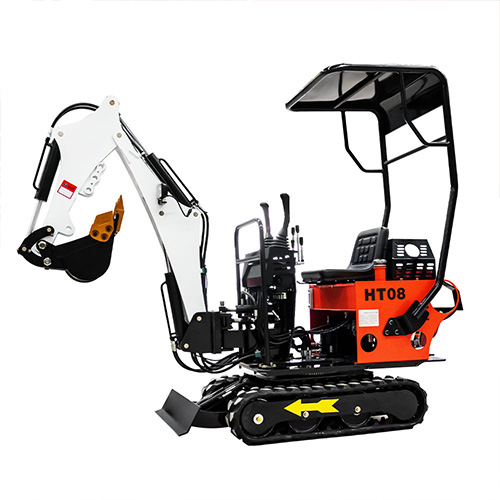

This mini excavator, the engine has the characteristics of high power, low noise, low emission, low fuel consumption, easy maintenance and so on. The small excavator reinforced tracks effectively improve the wear resistance of the tracks and prolong the service life. The mini excavator can also be equipped with attachments such as auger, grapple, rake, loosening machine, slender bucket, etc. to meet different construction scenarios.
The emergence of small excavators has replaced the bulky large wheeled excavators. Compared with large excavators, small excavators have low fuel consumption, good quality, low failure rate, no space restriction and various functions.
Widely used in agriculture and forestry planting, farmland remediation, small earthworks, municipal engineering, road repair, farms, garden planting, river dredging projects and other operating environments.
| Performance Parameters | Working Parameters | ||
| Rated power | 7KW | Total width | 720-780mm |
| Bucket capacity | 0.025m³ | Total Height | 1300mm |
| Bucket width | 300mm | Overall length | 2430mm |
| Weight of the whole machine | 800 kg | Minimum Ground Clearance | 80mm |
| Product Model | HT08 | Overall track length | 1140mm |
| Working pressure | 14Mpa | Track width | 150mm |
| Slewing speed | 12 rpm | Maximum digging radius | 2450mm |
| Travelling speed | 2.2Km/h | Maximum digging depth | 1200mm |
| Climbing capacity | 30° | Maximum digging height | 2350mm |
| Ground pressure | 19Kpa | Maximum unloading height | 1600mm |
| Maximum digging force | 7.5KN | Minimum turning radius | 1100mm |
| Maximum digging depth of bulldozer | 200mm | Maximum lifting height of the bulldozer | 120mm |
Choose reliable logistics
1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.
2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.
Arrival and acceptance guide
1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.
2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
